From quarry haul roads to coastal container ports — Kobelco earthmoving fleets show up where the schedule cannot slip and digging depth must match the bid book.
Highway contractors, quarry operators and bridge specialists do not buy “a generic excavator.” They buy a combination of track shoe width, bucket class, hydraulic system pressure and slewing speed that matches a published cut plan. Kobelco industry packages are therefore organized by job-site photo evidence and duty-cycle numbers rather than by marketing slogans.
When an EPC asks for a reference, we return the closest site class: limestone versus hard-rock quarry, mountain corridor versus coastal port berm, high-reach demolition versus underground drift support. That comparison includes commissioning days, mean-time-to-repair on contracted hours and which undercarriage kits were staged before the rainy season window.
Procurement teams face a real trade-off between terrain stability and road-transfer cost. Both sides are valid — the cut plan decides.
Lower ground pressure (typically 40–55 kPa on mid-class machines) suits soft quarry benches and deep cuts. Track shoe width and undercarriage mass stabilize breakout force above 140 kN and keep gradeability usable on wet haul-road shoulders. Most mass-earthworks and hard-rock face loading packages stay on crawlers for that reason.
Road transfers do not require a lowboy every move, which lowers operating cost on urban utility digs and multi-site highway shoulder work. Wheeled units trade some soft-ground flotation and deep-dig stability for faster site-to-site cycles when pavement access is continuous and digging depth stays moderate.
Kobelco applications engineers size crawler classes first when average digging depth exceeds ~6.5 m or ground pressure targets sit below 50 kPa; wheeled packages are recommended when weekly road kilometers dominate the duty cycle.
Clear operating boundaries keep bid packages honest. Share these constraints with the applications desk before locking machine class.
Compare packages on measurable dimensions — not brand slogans. Share these values with the Kobelco desk for a configuration sheet.
| Selection factor | Typical Kobelco mid-class range | Why it matters on site |
|---|---|---|
| Operating weight | 20–36 t | Sets trailer class, ground bearing and attachment duty |
| Bucket capacity | 0.8–1.9 m³ | Balances cycle time against rock density |
| Digging depth | 6.5–7.5 m | Must match published cut plan, not brochure max |
| Hydraulic system pressure | ~320 bar (32 MPa) | Drives breakout force and attachment hydraulics |
| Engine power | ~129–200 kW | Sized to Tier 4 Final / EU Stage V duty cycles |
| Ground pressure | ~40–55 kPa | Decides crawler shoe width on soft benches |

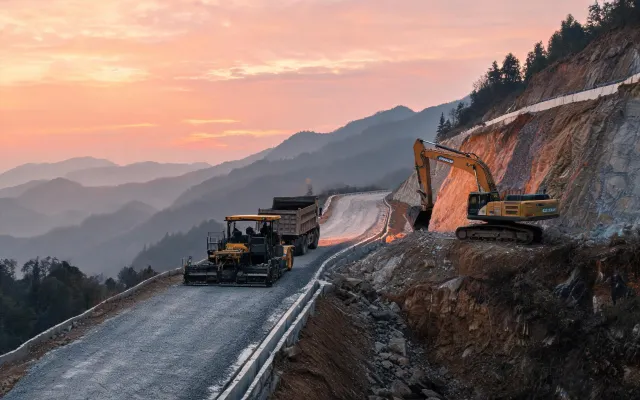

Mountain corridor base course · 800,000 t aggregate moved · 18-month window with night-shift earthworks.

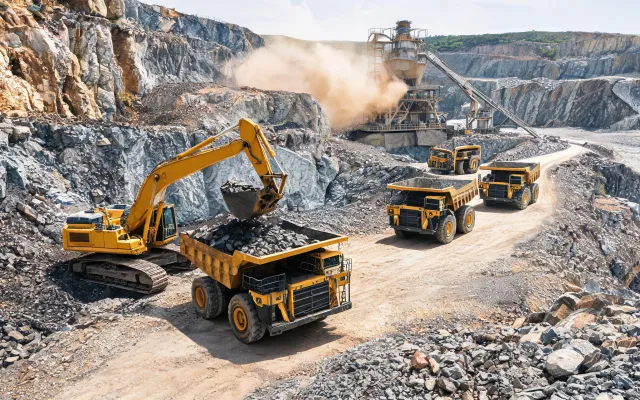

Hard-rock open pit · cone crusher feed cycle · 24/7 hauler convoy with reinforced undercarriage kits.

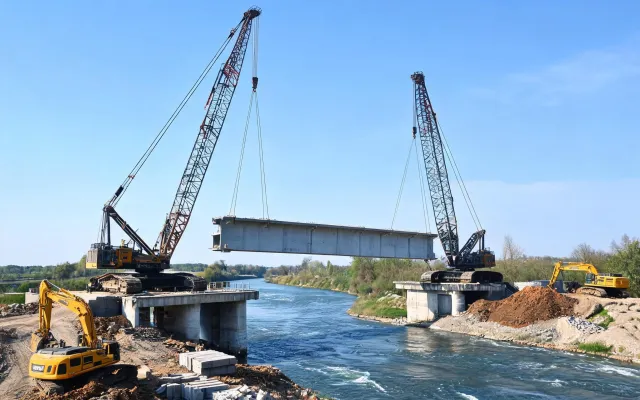

Precast segmental lift · 850-ton crawler tandem · excavators clearing abutment benches between cycles.

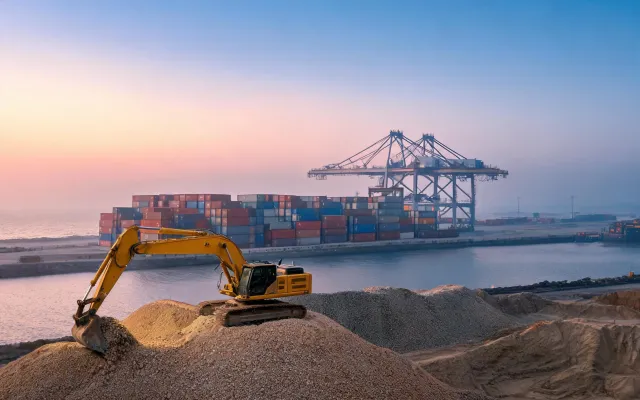

Coastal terminal berm work · salt-fog undercarriage packages · night-shift stockpile reshaping.

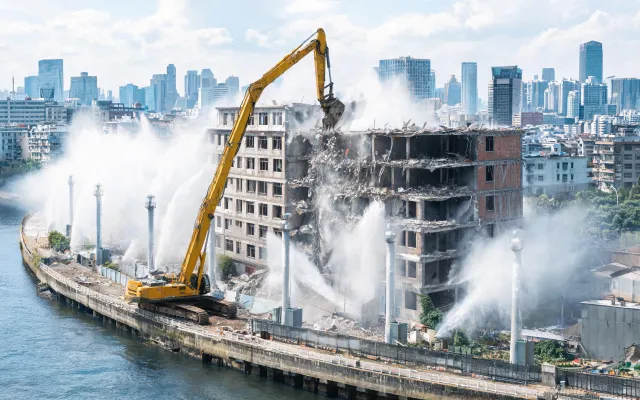

High-reach decommission · low-noise slewing packages · constrained footprint dig and sort cycles.

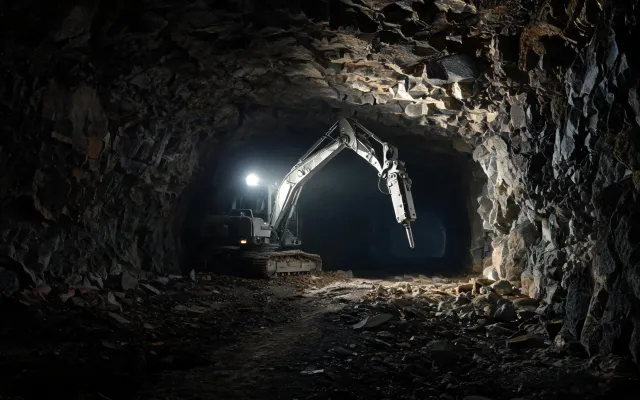

Drift development support · rock-breaker attachments · compact excavators for tight heading turns.
Share cut depth, rock class, fleet hours and delivery window. Our applications desk returns a comparable Kobelco excavator package with commissioning notes.
Cite the closest reference job-site
